FVC-3000肺活量計檢測儀,FVC-3000肺活量儀測定儀
空氣“流量”是診斷當今兩種最主要的呼吸系統疾病的決定因素。哮喘和COPD。但是，標準的肺活量測定儀校準注射器只能準確地驗證其體積！認識到這一點，美國胸科學會和社會保障殘疾標準現在建議通過以三種不同的速率改變標準的3升容量注射器的注射時間來檢查肺量計線性和流速準確性。0.5秒，6秒，介于兩者之間。盡管這是對先前建議的改進，但這是一種不精確且耗時的方法，需要秒表。結果，很少有人遵循這些建議。
FVC-3000肺活量儀測定儀由美國Jones生產與研發！

FVC-3000肺活量計檢測儀,FVC-3000肺活量儀測定儀 不僅可以驗證FVC參數，還可以驗證FEV1，F(xiàn)EF 25-75，PEFR和瞬時呼氣流速（FEF25，F(xiàn)EF50和FEF75）以及FIVC。現在，您可以在1.5到3升的體積范圍內以1.5毫升的數字增量從零到每秒12升驗證您的肺功能設備的流速精度！

單獨手工制作，達到zui 高標準
由9伏電池供電，提供無線，易于使用的設計
大型LCD屏幕顯示FVC，F(xiàn)EV1，PEFR，F(xiàn)EF25，F(xiàn)EF50，F(xiàn)EF75，F(xiàn)EF25-75和FIVC
由高品質304不銹鋼制成，并進行透明涂層處理，以實現zui 大的一致性和耐用性
錐形鼻錐可適應最廣泛的配件，從1.0“到1.5”
注射腳可確保穩定準確的操作
體積精度為0.5％或15ml，符合所有公認的標準
尺寸：4.25英寸（寬）x 26英寸（長）
重量：6.0磅

Air “flow” is the determining factor in the diagnosis of today’s two most predominant respiratory diseases; asthma and COPD. Yet, standard spirometry calibration syringes can only accurately validate for volume! Recognizing this, the American Thoracic Society and the Social Security Disability standards now recommend checking spirometric linearity and flow rate accuracy by varying injection times of a standard 3-liter volumetric syringe at three different rates; 0.5 seconds, 6 seconds, and somewhere in between. Although this is an improvement over previous recommendations, it is an inaccurate and time-consuming approach requiring a stopwatch. As a consequence, very few people follow these recommendations.

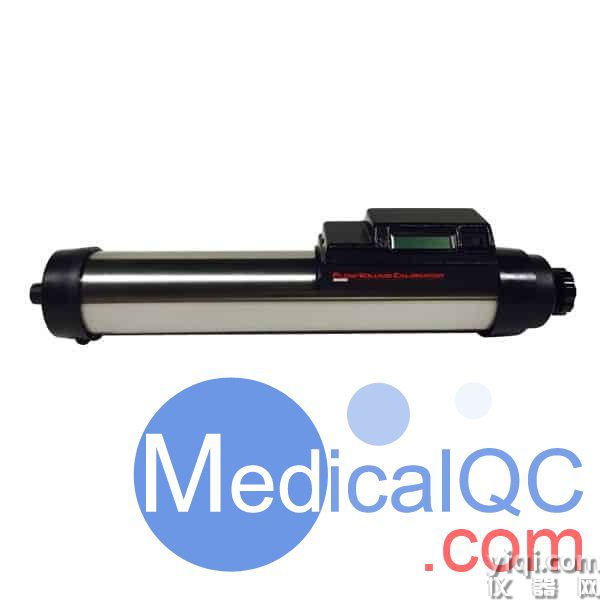

The digital Flow-Volume Calibrator? surpasses these requirements by providing the ability to validate not only the FVC parameter, but also the FEV1, FEF 25-75, PEFR and instantaneous expiratory flow rates (FEF25, FEF50, and FEF75), as well as the FIVC. You can now verify the flow rate accuracy of your pulmonary function device from zero to twelve liters per second anywhere in the volumetric range of zero to three liters in digital increments of 1.5 milliliters!

• Individually handcrafted to the highest standards

• Powered by 9 volt battery, providing a wireless, easy-to-use design

• Large LCD screen displays FVC, FEV1, PEFR, FEF25, FEF50, FEF75, FEF25-75 and FIVC

• Manufactured from high quality 304 Stainless Steel and clear-coated for maximum consistency and durability

• Tapered nose cone adapts to the widest range of fittings, 1.0″ to 1.5″

• Syringe feet promote stable and accurate operation

• Volume accuracy of 0.5% or 15ml, meeting all recognized standards

• Dimensions: 4.25” (W) x 26” (L)

• Weight: 6.0 lbs.
